Rear Shock, Pair 3.0 Internal Bypass R/R, DSCA, 0-1.5", Stage 5 For Ford F150 2021-2024 (Fox)

Warranty Period (Years): 1

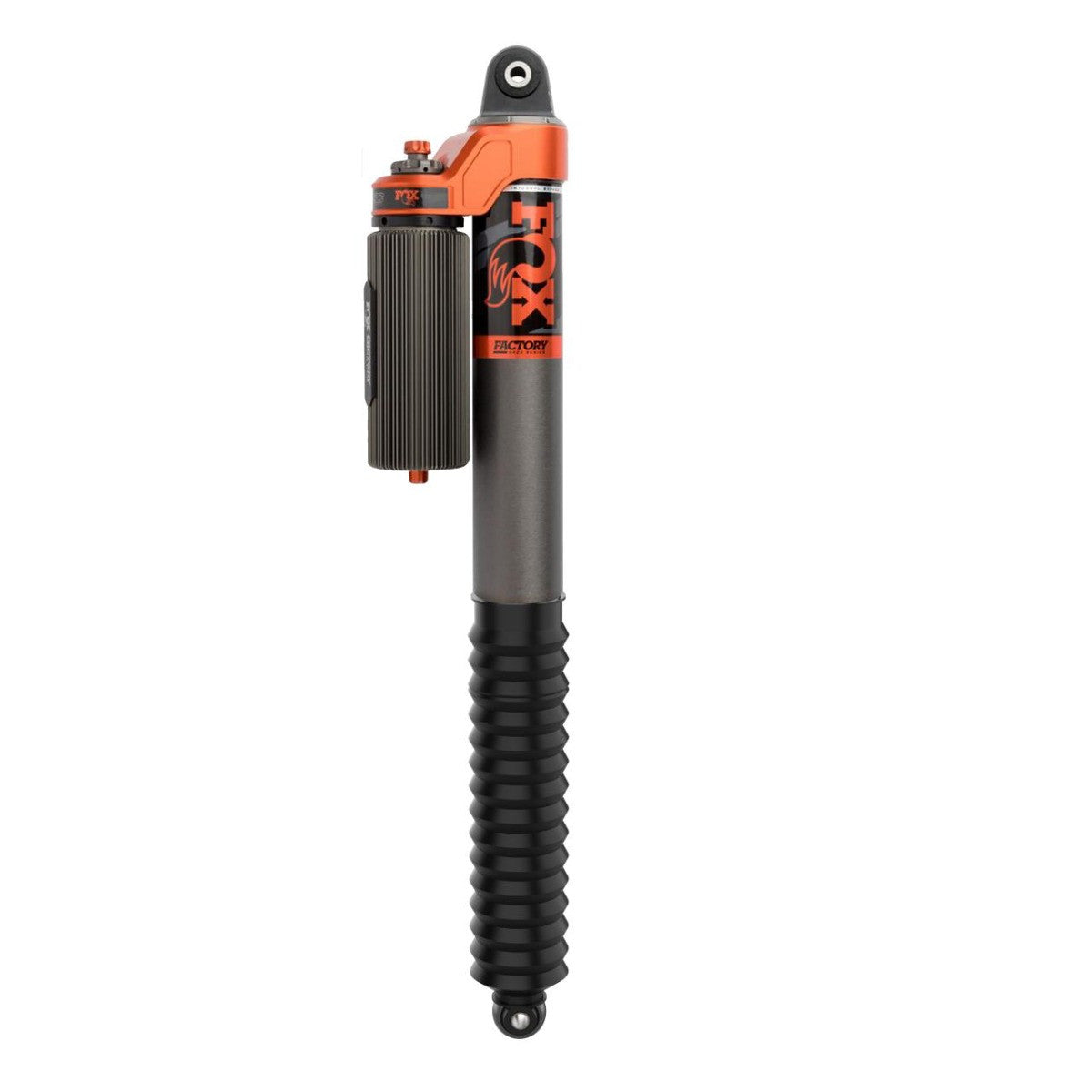

FOX Factory Race Series 3.0 Internal Bypass Piggyback Shock (Pair) – Adjustable for Ultimate Off-Road Performance

Maximize Your Ford F-150’s Off-Road Capability

The FOX Factory Race Series 3.0 Internal Bypass Piggyback Shocks are engineered specifically for the 14th generation Ford F-150, delivering position-sensitive damping technology that adapts to the terrain you conquer. Designed to withstand the rigors of off-road racing, these shocks provide exceptional control and comfort for both casual and hardcore off-road enthusiasts.

Key Features of FOX Factory Race Series 3.0 Internal Bypass Piggyback Shocks

Advanced Internal Bypass Design
Utilizing patented internal bypass technology, these shocks offer multiple zones of damping control. This allows for a plush, predictable ride while providing the necessary damping force to manage hard bottom-outs and prevent harsh top-outs during rugged off-road adventures.

High-Performance Construction
The shocks are crafted from 3.0" impact-extruded and CNC machined 6061-T6 hard-anodized aluminum, ensuring durability and resistance to corrosion. The finned reservoir and recirculating reservoir bridge keep shock temperatures cool, enhancing performance during extreme conditions.

Application-Specific Components
Each shock features application-specific springs and vehicle-specific tuning to maximize performance. The 7/8" stainless steel shafts provide added strength and stability, making these shocks ideal for serious off-road applications.

Redundant Sealing Pack System
The redundant sealing pack system includes a main seal, wiper seal, and scraper seal, ensuring protection against dirt and moisture, which enhances reliability and longevity even in harsh environments.

Technical Specifications

• Part Number: 883-26-121
• Travel: 10.72"
• Rear Lift Height: 0-1"
• Extended Length: 28.3"
• Compressed Length: 17.58"
• Top Mount: Eyelet
• Bottom Mount: Eyelet
• Components: Finned reservoir with DSC adjuster
• Shaft: 7/8" stainless steel shafts

Frequently Asked Questions (FAQ)

Q1: What benefits do FOX Factory Race Series 3.0 Internal Bypass Piggyback Shocks provide for my Ford F-150?
A: These shocks deliver superior control and comfort with position-sensitive damping technology, allowing your F-150 to adapt to various terrains. They help manage bottom-outs and top-outs effectively, ensuring a smooth ride over rough surfaces.

Q2: How does the internal bypass technology enhance performance?
A: The internal bypass technology allows fluid to bypass the main piston during the initial travel, increasing comfort on rough terrain. When reaching extreme compression or rebound, the fluid is forced through the piston, providing the necessary damping force for better handling.

Q3: Can these shocks handle extreme off-road conditions?
A: Absolutely! The FOX Factory Race Series shocks are designed specifically for high-performance off-road use, providing exceptional durability and performance in harsh conditions, thanks to their robust construction and advanced damping features.

 Q4: What is the advantage of the finned reservoir design?
A: The finned reservoir improves heat dissipation, ensuring that the shock fluid remains cooler during extended off-road sessions. Cooler shocks perform better and have a reduced risk of fade, allowing for consistent performance.

Q5: How can I adjust the shocks for different driving conditions?
A: These shocks feature a Dual Speed Compression (DSC) adjuster that allows you to fine-tune the damping settings based on your load and driving style, providing the flexibility to adapt to both on-road and off-road environments.

Q7: Are these shocks suitable for lifted Ford F-150 models?
A: Yes, the FOX Factory Race Series shocks are designed to fit most lifted configurations of the 14th generation Ford F-150. Be sure to verify fitment based on your specific suspension setup for optimal performance.
