Front Coil-Over, Single 2.0, IFP, 0-2", Stage 1 For Ford F150 2021-2024 (Fox)

Warranty Period (Years): 1

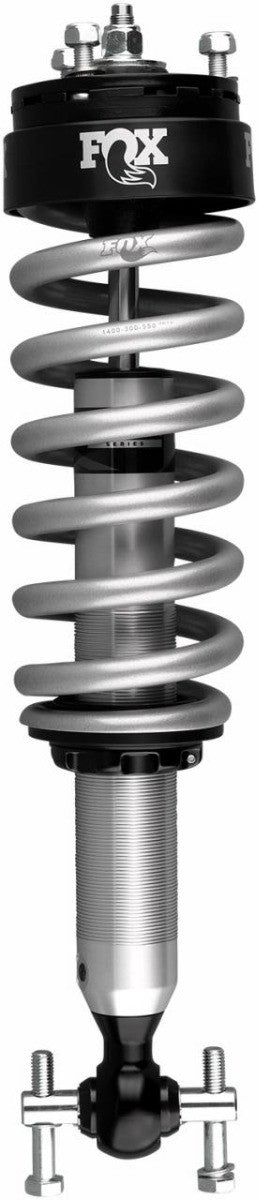

Performance Series 2.0 Coil-Over IFP Shock for 14th Generation Ford F-150

Enhance the performance and comfort of your 14th generation Ford F-150 with FOX’s Performance Series 2.0 Coil-Over IFP Shock. Engineered as a bolt-on solution specifically tuned for your truck, these shocks improve both off-road capability and on-road comfort while ensuring no additional strain is placed on critical suspension components such as ball joints or linkages.

Boost Your Off-Road Capability With larger 2-inch diameter dampers and an Internal Floating Piston (IFP) design, FOX shocks deliver superior off-road performance. The IFP technology keeps the shock fluid and nitrogen gas separate, maintaining consistent damping and precise handling, even during extended off-road use. The oversized monotube design accommodates significantly larger pistons than your stock shocks, providing improved load control and towing comfort.

Improved On-Road Performance and Comfort The FOX Performance Series shocks feature performance-minded valving that enhances ride comfort and reduces vehicle sway, giving you a connected and stable driving experience on highways. Whether you're towing heavy loads or navigating rough terrain, these shocks provide the support and damping control needed to keep your vehicle smooth and in control.

Built to Last with Superior Materials Impact-forged from 6061-T6 aluminum, the shock bodies are designed to dissipate heat four times faster than standard steel, reducing fade and maintaining performance in extreme conditions. The clear-anodized finish offers excellent resistance to rust and corrosion, far surpassing the longevity of stock painted steel twin-tube shocks. These shocks are also fully serviceable and re-valveable, providing a long-lasting solution that can adapt as your needs change.

Easy Bolt-On Installation The Performance Series Coil-Over IFP Shocks are designed for an easy bolt-on installation, requiring no modifications to your F-150. With vehicle-specific valving, you'll experience immediate improvements over your stock ride quality, both on and off the road.

Key Features and Specifications:

• Body: 2.0” impact-extruded and CNC-machined 6061-T6 clear anodized aluminum body for superior heat dissipation and rust resistance.
• Reservoir: Internal IFP mono-tube reservoir design for consistent damping performance.
• Components: Black-anodized, CNC-machined 6061-T6 billet aluminum components for enhanced durability.
• Shaft: 5/8" hard chrome-plated, heat-treated alloy steel for maximum strength and reliability.
• Piston: Race-developed high-flow piston design for optimized performance.
• Valving: Application-specific tuning for maximized performance tailored to the F-150.
• Seals: Redundant sealing pack system with main seal, wiper seal, and scraper seal for improved reliability.
• Travel: 4.89 inches.
• Front Lift Height: 0-2 inches.
• Extended Length: 23.21 inches.
• Compressed Length: 19.6 inches.
• Top Mount: OEM.
• Bottom Mount: Bar Pin.
• Part Number: 985-02-146.
• Fitment Notes: Not compatible with Hybrid and Tremor submodels.

Built for Every Terrain With FOX Performance Series Coil-Over IFP Shocks, you'll experience enhanced comfort and control whether you're navigating off-road trails or cruising on the highway. These shocks offer the perfect balance between off-road capability and on-road comfort, ensuring a superior ride in all conditions.

Frequently Asked Questions (FAQ)

Q: What makes the FOX Performance Series 2.0 Coil-Over IFP Shock better than stock shocks?
A: FOX Performance Series shocks feature a 6061-T6 aluminum body that dissipates heat four times faster than steel, preventing shock fade and maintaining consistent performance. The larger monotube design and race-developed piston deliver better damping control, especially when towing or off-roading.

Q: How does the Internal Floating Piston (IFP) technology work?
A: The IFP technology separates the shock oil from the nitrogen gas chamber, preventing aeration and maintaining consistent damping performance. This design improves handling and provides smoother, more reliable shock absorption, even during intense off-road use.

Q: Can I adjust the ride height with this shock?
A: Yes, the Performance Series 2.0 Coil-Over IFP Shocks offer adjustable front lift heights of 0-2 inches, allowing you to level or raise your Ford F-150 while maintaining proper suspension geometry.

Q: Are these shocks compatible with all Ford F-150 models?
A: These shocks are designed for the 14th generation Ford F-150. However, they are not compatible with Hybrid or Tremor submodels. Always check your vehicle’s compatibility before purchasing.

Q: How durable are these shocks for extreme off-road use?
A: The shocks are highly durable, thanks to their impact-forged aluminum body, black-anodized CNC-machined components, and redundant sealing system. These features ensure excellent corrosion resistance, heat dissipation, and protection in extreme off-road conditions.

Q: Can these shocks be serviced or re-valved?
A: Yes, all FOX Performance Series shocks are fully serviceable and re-valveable, which means you can extend their lifespan and customize their performance to meet your specific driving needs over time.

Q: Will these shocks improve my vehicle’s towing capability?
A: Yes, the larger 2.0 monotube design and high-flow piston provide improved control and comfort while towing, keeping loads balanced and vehicle handling consistent during heavy-duty use.
