Front Coil-Over Pair 2.5, R/R, DSCA, 0-3 Stage 3 For Ford F150 2015-2020 (Fox)

Warranty Period (Years): 1

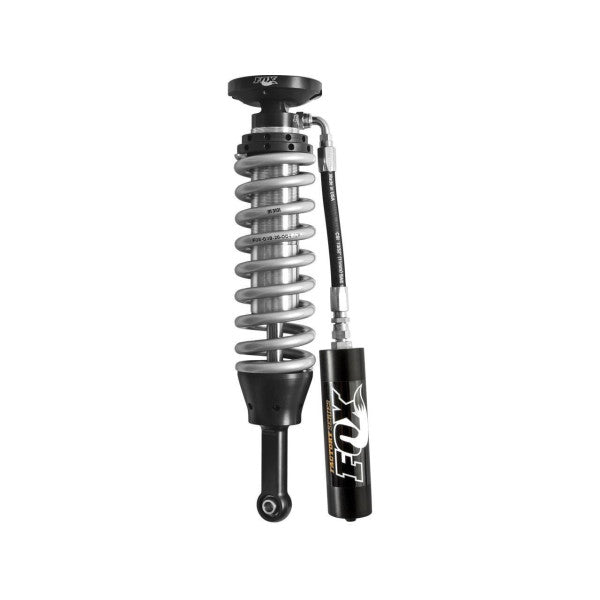

FOX Factory Race Series 2.5 Coil-Over Reservoir Shock (Pair) – Adjustable for Maximum Control

The FOX Factory Race Series 2.5 Coil-Over Reservoir Shock is designed to handle tough off-road conditions while giving you the precise control and comfort you need. With race-proven technology, these shocks are ready to improve your vehicle's performance, no matter the terrain. Made with durable materials, these shocks provide both excellent suspension and vehicle lift right out of the box.

Key Features of FOX Factory Race Series 2.5 Coil-Over Reservoir Shock

Strong, Adjustable Coil-Over Design
The Factory Race Series 2.5 Coil-Over Reservoir Shock includes a built-in coil spring that supports your vehicle's weight while also providing smooth suspension damping. You can adjust the ride height (from 0 to 2 inches) to customize your vehicle's stance and handling for off-road driving or daily use.

Heat-Dissipating External Reservoir
The shock’s external reservoir helps prevent overheating by moving oil away from the main body, which keeps your suspension working smoothly even during long off-road drives. This ensures better performance and longer-lasting durability.

Durable Zinc-Plated Steel Body
Built from a 2.5” smooth bore, zinc-plated seamless steel body, these shocks are tough and made to last. The zinc plating is double-clear coated to protect against rust and wear, making them suitable for all weather conditions and terrains.

FOX Factory Race Series Shocks: Engineered for Precision

Custom-Tuned Valving for Your Vehicle
These shocks are equipped with application-specific valving, meaning they are tuned to your vehicle's specific needs. This ensures that your suspension will provide maximum performance, handling, and comfort, whether you’re driving on rocky trails or smooth highways.

Advanced Sealing for Long-Lasting Performance
The redundant sealing pack system includes a main seal, wiper seal, and scraper seal to protect the shocks from dirt, water, and debris. This multi-layer protection helps the shocks perform smoothly even in the harshest conditions.

PTFE-Lined Bearings for Smooth Operation
The PTFE-lined, heat-treated alloy steel bearings ensure that your shocks move smoothly, even under heavy loads. These bearings reduce friction, giving you better control and extending the life of your shocks.

Technical Specifications

• Body: 2.5” smooth bore zinc-plated seamless steel
• Travel: 5.47"
• Front Lift Height: 0-2"
• Extended Length: 22.62"
• Compressed Length: 17.15"
• Reservoir: 2.5" smooth bore and honed seamless alloy
• Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
• Shaft: 7/8" hard chrome-plated steel
• Piston: 6061-T6 hard-anodized high flow aluminum
• Valving: Application-specific valving for optimized performance
• Seals: Redundant sealing pack system (main seal, wiper seal, scraper seal)
• Bearings: PTFE-lined, heat-treated alloy steel spherical
• Top Mount: TM
• Bottom Mount: Bar Pin

Frequently Asked Questions (FAQ)

Q: How does the external reservoir improve shock performance?
A: The external reservoir helps keep the shocks cool by moving oil away from the main body, preventing overheating and ensuring smooth, consistent performance even during long off-road trips.

Q: Can I adjust the ride height with these shocks?
A: Yes, the integrated coil spring allows you to adjust the ride height from 0 to 2 inches, giving you control over your vehicle’s stance and handling.

Q: What makes the redundant sealing system important?
A: The redundant sealing system protects the shocks from dirt, water, and other contaminants, ensuring that they continue to perform smoothly and last longer, even in tough environments.
